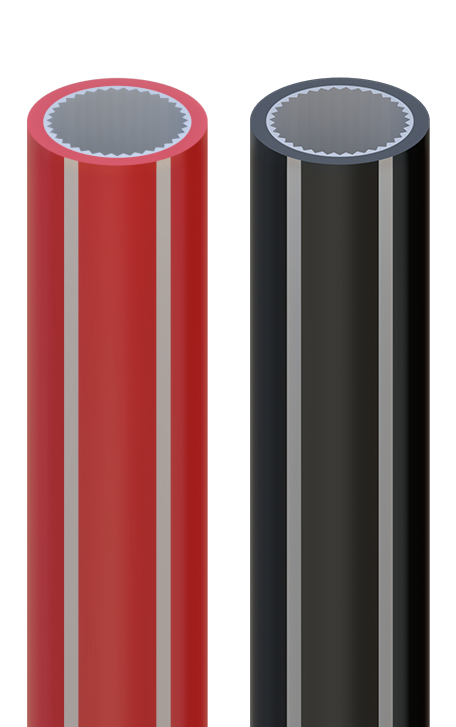

HDPE Ducts
HDPE Ducts are used for protecting telecommunication cables such as copper, fiber optic cables or energy cables. HDPE Ducts are are suitable for installation applications such as standard underground and as innerducts in existing conduits.
Features
Made from flexible and resilient HDPE, providing superior resistance to damages
Continuous lengths reducing joining costs
Excellent low temperature properties to handle harsh climate conditions
Provides a permanent pathway, simplifying future cable repairs or replacement
Color
Blue
Orange
Green
Red
Gray
Black
Violet
Optional
Silicone Inner Lining
Custom Marking
Smooth or Ribbed Wall
Specifications and Shipping Info
Choose Conduit Size, Wall Type and Wall Ratio
MICRODUCT SIZE MM
24/16
24/20
25/20
25/21
32/26.2
32/27
40/32
40/32.6
40/33
40/34
50/41
50/40.8
50/42
50/43
50/44
63/51.4
75/61.4
110/90
125/102.2
140/114.6
160/130.8
MICRODUCT SIZE INCH
Choose
SDR RATIO
Choose
Product Specifications
Outer Diameter (mm)
24
Inner Diameter (mm)
16
Wall Thickness (mm)
4
Weight (kg/m)
0.239
Bend Radius (mm)
240
Application (DB/DI)
DB
Reel Specifications
Reel Size (mm)
2100 x 550
Standart Length (m)
2000
Test Compliance
Temperature Range
Send E-Mail
Print
Save PDF
